Used Equipment


Single (2) axis slide, ball screw driven,

with (8) position indexing tool turret (Sauter)

Slide travel  4-3/8"



314 Fall Street, Seneca Falls, N.Y.
T: 315.568.5804 F: 315.568.5800

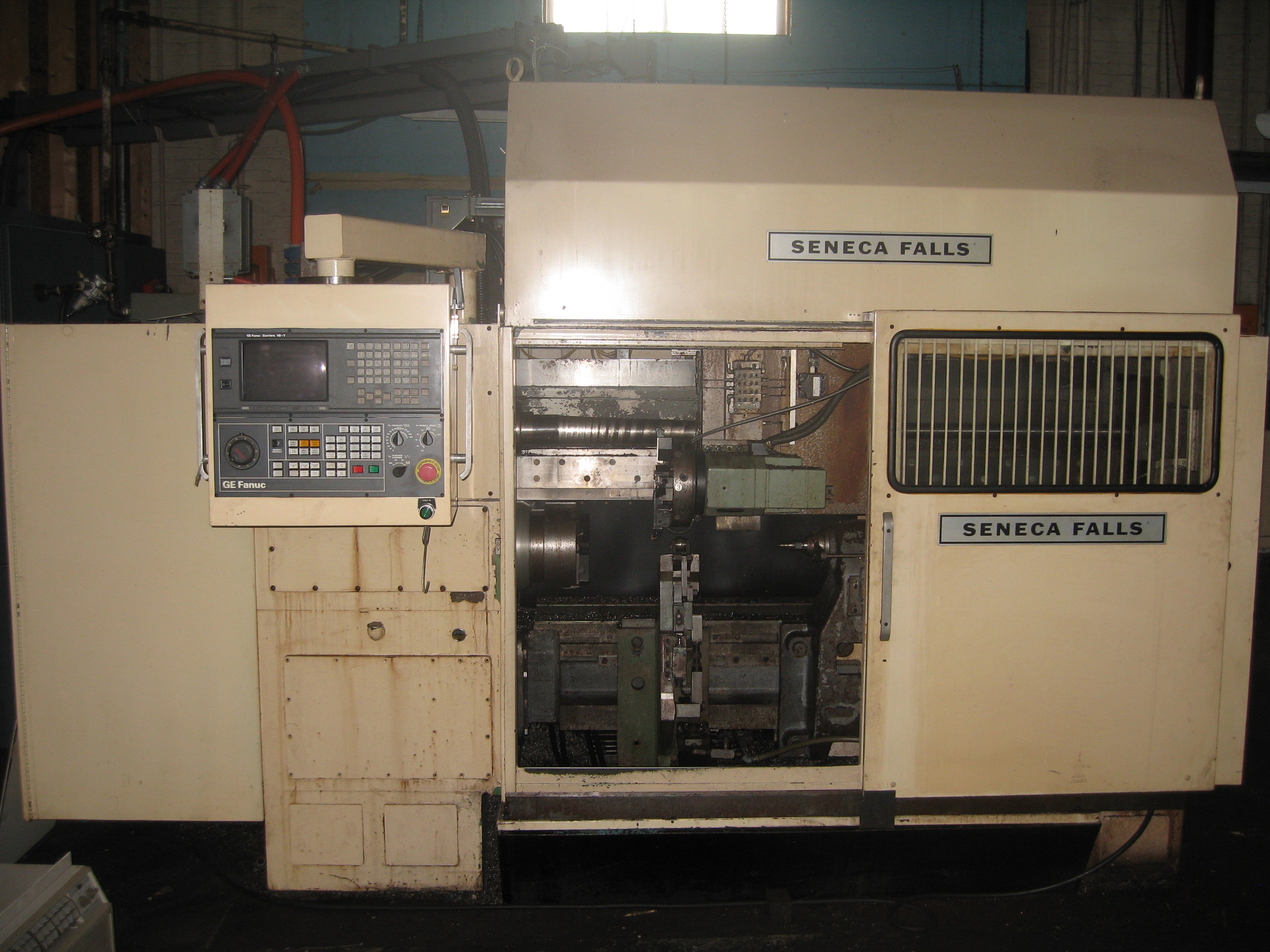

              Seneca Falls Model 400 CNC Lathe


Swing over bed ways  20"

Swing over overhead carriage  10.5"

Height of spindle centerline from floor  38"

Distance between centers  26"

With SFTG work driver   31"



Quill diameter  4-7/8"

Stroke of quill  3"

Diameter of live center  1-3/8"

Positioning  Rack and pinion


Ways and slide  Hardened and ground, replaceable

Lubrication  Automatic trabon

Chip conveyor with 60 gallon tank

Machine weight  18,000 #

Floor space required (less control panel)  74 x 115"





Spindle nose  8" A2

Hole thru spindle  2"

Taper in bore  #6 Morse

Spindle motor  40 HP

Two speed headstock  135-3700 rpm

Lubrication with oil cooler and heater  Pressue system



(2) power chucks  6" capacity

Indexing tool block holders  Varies

Qty (2) 3-roll hydraulic steady rest (SMW)

 2-1/2 capacity
