Weight

With Tailstock and Back Attachment.

Approx. net Ibs .................................. 3400  Cr~ed ................................. 3600

Boxed .................................. 3800

Floor space

Length ................................................ 48"

Width ................................................... 331/2" Height ................................................. 46" Specifications correct at time of publi-
cation
. The Seneca Falls Machine Co.,
whose policy is one of continuous im-
provement, reserves the right however,
to change at any time, speci
fications or
design without notice.

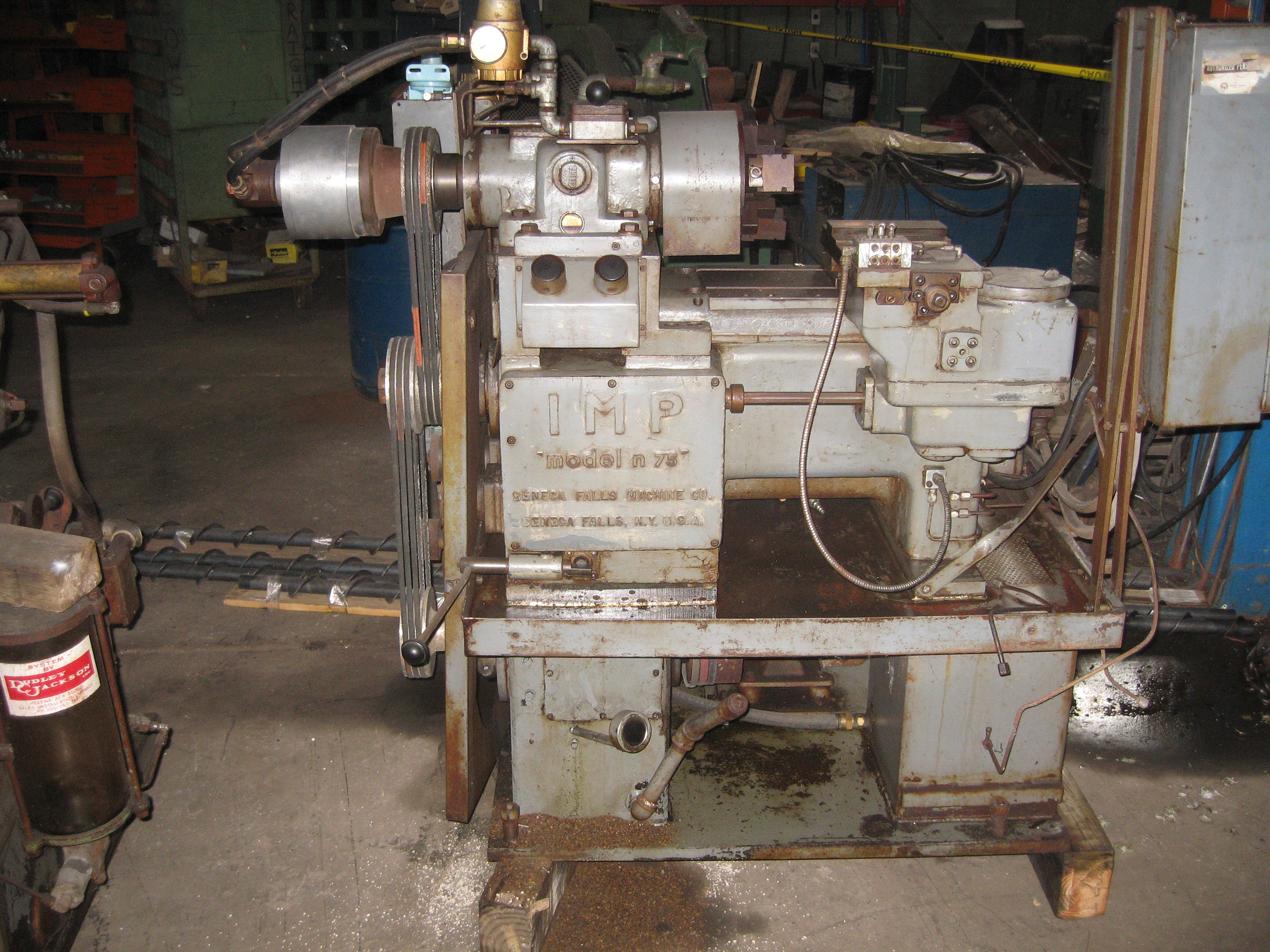

Seneca Falls Model N (IMP) Automatic Lathe









Spindle characteristics

Nose 5" Type A2 American Standard

Taper hole in nose ................. NO.5 Morse

Hole in spindle ................. 1 1/16" diameter



Height from floor ................................42 7/8" Back Squaring

Attachment

Cross travel .........................................2 1/4" Cross adjustment . . . . . . . . . . . 11 1/4"

Width of slide ....................................... 6 3/8" Spindle speeds
available

V Belt Direct Drive

400-5000 R.P.M. through 3 ranges
Special Geared Reduction Head

100-532 R.P.M. through 2 ranges
Speeds changed b
y pick-off pulleys.

Third Slide

Cross travel ......................................... 2 1/4" Cross adjustment. . . . . . . . . .. 3/4"

Width of slide .................................... 5 3/4"

Feeds available

Front Carriage Longitudinal
.001" - .054" through four ranges.

Other feed ranges available through

special gearing and cams.

Rapid Traverse
370" per minute.

Front Cross
Slide

Cross travel . . . . . . . . . . . . . . . 1 1/4"

Cross adjustment ................................ 1" Width of slide ........................................ 7"

Motor Drive

Electric Control

Motor mounted in base with magnetic
starter. Push Button Control.

Horsepower required ........................... 5 Horsepower optional ............................ 7 1/2





Capacity

Swing over front slide-standard 41/2"
Swing over rear slide-standard 4
1/2"
Swing under third slide-

standard ........................................... 4 1/2" Distance between centers-

standard ............................................... 8" Distance between centers-

special shelf . . . . . . . . . . . .. 12"
Length of carriage travel-

maximum. . . . . . . . . . . . . ..                   5" Tailstock

(set-over type)

Stroke (ai r operated) .......................... 3 1/2"

Stroke (lever operated) . . . . . .. 1"
Taper in spindle .. (Seneca Falls Std.)

Diameter of quill .................................. 25/8" Available, air-operated and hand-oper-
ated by lever
. Equipped with dead cen-
ter or anti-friction bearing-mounted
spindle
.
